Impact Bifold Doors | Hurricane Rated Aluminum Folding Doors

Materials & Construction

Rutao impact bifold doors utilize aerospace-grade 6063-T5 aluminum extrusions with wall thicknesses ranging from 0.080″ to 0.125″, providing superior structural integrity compared to standard residential doors. The frame profiles feature reinforced thermal breaks made from high-density polyamide resin, delivering both energy efficiency and maintaining structural strength under extreme loads. All aluminum surfaces receive multi-stage pretreatment followed by AAMA 2604-compliant powder coating that resists salt spray corrosion for 10+ years in coastal environments.​

The glazing system employs impact-rated laminated glass consisting of two or more layers of tempered glass bonded with 0.030″ PVB (polyvinyl butyral) interlayers. This construction meets ASTM E1996 and E1886 Large Missile Impact test requirements, withstanding 9-pound 2×4 lumber projectiles traveling at 50 feet per second. The glass-to-frame interface uses continuous EPDM gaskets with corner fusion welding, creating a watertight seal that prevents infiltration even under sustained pressure equivalent to 8 inches of standing water.

Structural System & Operation

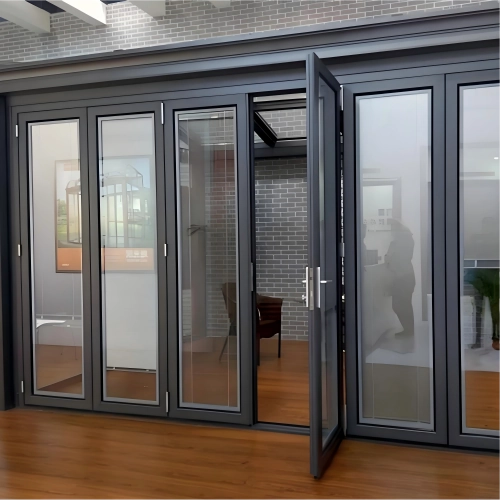

The door system employs a top-hung roller mechanism with precision stainless steel ball-bearing carriers rated for 50,000+ operational cycles. Each panel weighs between 80-150 pounds depending on size, but the engineered roller system allows single-finger operation once unlatched. Panels fold accordion-style and stack to one side, occupying only 8-10 inches of clear opening width per panel when fully open.​

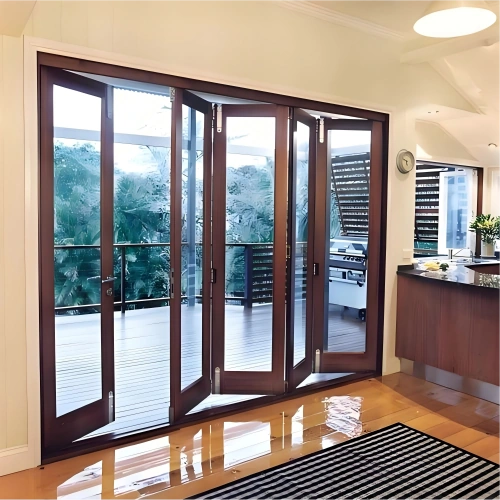

The track system features an extruded aluminum top rail with continuous weather stripping and a minimal 5/8″ raised threshold at the floor. This low-profile threshold design meets ADA accessibility guidelines while maintaining the structural performance required for hurricane ratings. Vertical stile connections between panels use heavy-duty pivot hinges with self-lubricating bronze bushings, eliminating maintenance requirements while ensuring smooth operation even after years of exposure to salt air.

Hurricane Protection Features

Rutao’s impact bifold doors achieve Design Pressure (DP) ratings from DP-70 to DP-100, corresponding to wind resistance from 161 mph to 198 mph. Testing certifications include:​

• TAS 201, 202, 203: Florida Building Code impact testing protocols using both small and large missile testing

• ASTM E330: Structural performance under uniform static air pressure

• ASTM E283: Air infiltration resistance (<0.3 CFM per square foot at 1.57 psf)

• ASTM E547: Water penetration resistance (no infiltration at 8.0 psf equivalent to 12+ inches of standing water)

• Florida Product Approval: Certified for use in High Velocity Hurricane Zones (HVHZ) including Miami-Dade and Broward Counties

The multi-point locking system engages at three locations on each active panel: top, middle, and bottom, with shoot-bolt mechanisms that extend into the head and sill, creating continuous perimeter engagement. Marine-grade stainless steel hardware resists corrosion even in direct salt spray environments.

Energy Efficiency & Comfort

Beyond storm protection, these doors deliver year-round comfort and energy savings. The thermally broken aluminum frames reduce heat transfer by 70% compared to non-thermal designs, achieving U-factors between 0.35-0.45 depending on glass selection. Low-E glass coatings can reduce solar heat gain by up to 60% while maintaining visible light transmission above 60%, keeping interiors comfortable without blocking views.

Acoustic performance reaches STC (Sound Transmission Class) ratings of 32-38, reducing exterior noise by 15-20 decibels—transforming a loud street environment into a quiet interior space comparable to a suburban neighborhood. The multi-chamber frame design and laminated glass contribute to this sound dampening, making Rutao impact bifold doors ideal for urban high-rises or properties near highways, airports, or busy beaches.

Applications & Use Cases

Rutao impact bifold doors excel in diverse settings where both protection and openness matter:

• Residential Coastal Homes: Connect living rooms, master suites, or dining areas to pools, patios, and ocean views while meeting hurricane building codes in Florida, Gulf Coast states, and Caribbean properties

• High-Rise Condominiums: Provide balcony access with certified wind load resistance for upper floors where wind pressures increase exponentially with height

• Commercial Hospitality: Create flexible spaces in beachfront restaurants, resort lounges, and event venues that open completely during calm weather and secure during storm warnings

• Marine Applications: Yacht clubs, marinas, and waterfront retail benefit from corrosion-resistant construction and salt-air warranties

• Institutional Buildings: Schools, libraries, and community centers in hurricane zones can incorporate natural ventilation and outdoor learning spaces without compromising occupant safety

Why Choose Rutao Impact Bifold Doors

Certified Protection You Can Trust: Unlike decorative bifold doors retrofitted with impact glass, Rutao engineers each component—frame, hardware, and glazing—as an integrated system specifically for hurricane performance. Our doors don’t just meet code minimums; they exceed them, often testing 20-30% stronger than required.​

No Compromise on Aesthetics: Competitor products often sacrifice sightlines for strength, but Rutao’s advanced engineering allows minimal 4.5″ frame profiles, maximizing glass area to preserve views. The sleek contemporary appearance suits modern architecture while meeting the strictest safety standards.

Long-Term Value: While impact bifold doors cost 40-60% more than standard folding doors, they eliminate the need for separate storm panels or shutters that cost $25-45 per square foot to install. Rutao doors also increase property values by 5-10% in hurricane-prone markets and reduce insurance premiums by 15-45% with documented hurricane protection.​

Local Code Expertise: Our team maintains current knowledge of evolving building codes across all coastal states and can provide engineered drawings and product approval documentation required for permit applications, saving you weeks in the approval process.

Lifetime Support: Rutao backs impact bifold doors with comprehensive warranties: lifetime on aluminum frames, 10 years on powder coating, 5 years on hardware, and 2 years on weatherstripping. Our nationwide service network ensures parts availability and expert installation support throughout the product lifecycle.
